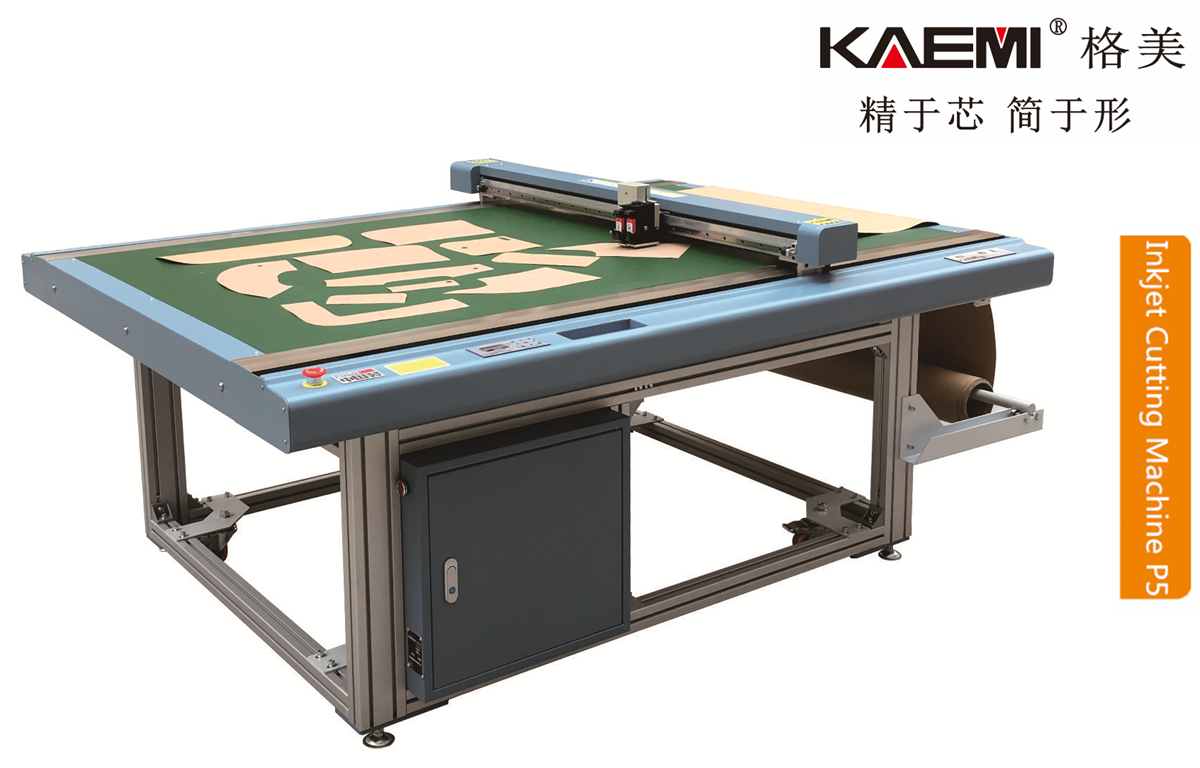

P5 Inkjet Cutting Machine

Hit：1038 Add times：2020-04-25

Main Features

Intelligent Switching System With Double Head.

Intelligent (Straight Line, Arc, Sharp Angle, Arc Angle) Line Subdivision Speed Control System

Intelligent Identification (Outer Contour, Repeated Lines, Scissors) Priority Processing System.

Intelligent Optimization Of The Whole Graph Data Cutting Path System.

Technical Parameters

Prouduct Model

GM-1209P5

GM-1509P5

GM-1510P5

GM-1512P5

Cutting Window(Fabric Scope)

1200*900mm

1500*900mm

1500*1000mm

1500*1200mm

Overall Dimension(mm)

1700*1570*1100

2000*1570*1100

2000*1770*1100

Max Speed

1200mm/s

Materials Fasten

Vacuum Adsorption

Maximum Cutting Thickness

3mm(Maximum Cutting Thickness Varies from Materials to Materials)

Cutting Materials

White Paper, Kraft, Plastic Board, Fiberboard, etc

Printing Speed

75㎡/h

Plot/Cut Tool

HP45 Ink Box,Tungsten Steel Blade

Precision

≤0.01mm

Communication Port

USB/RJ45 Ethernet

File Formats

HPGL(Compatible with Domestic and Interntional CAD Online)

Control Panel

9 Keys and LED Display(Chinese and English Switch)

Motor/Driver

High Performance 3 Phrase Step-motor

Supply Voltage

AC 220V/110V±10%, 50Hz

Working Environment

Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH

Paper Thickness

150g-500g/㎡

Application Areas

Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
